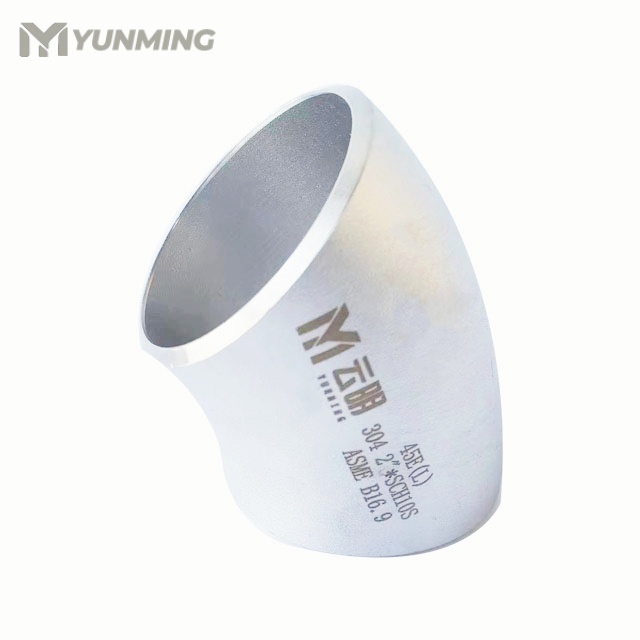

45° Elbow
Yunming Metal supplies stainless steel 45° elbows in grades such as 304, 316L, and 2205. These elbows provide smoother directional change in pipelines and are available in seamless and butt-welded types. ASME B16.9 compliant and ready for export.
Have questions? YUNMING sales representatives are available for live chat now
Product Overview
A 45° elbow is used to change the flow direction of a piping system at a 45-degree angle. Compared to 90° elbows, it creates smoother flow transitions and reduces fluid resistance. This type of elbow is commonly used in industrial pipelines requiring gradual directional changes and is available in seamless or butt-welded forms.
Application Areas
-
Oil and gas transmission pipelines
-
Chemical and petrochemical processing
-
Water treatment systems
-
Power generation and boiler pipelines
-
Marine and shipbuilding industries
-
Food and beverage manufacturing lines
Product Features
-
Available in seamless and butt-welded configurations
-
Manufactured from high-grade stainless steel: 304, 316L, 321, 310S, 2205, 2507
-
Smooth internal radius for low turbulence and reduced pressure loss
-
Conforms to ASME B16.9 and other international piping standards
-
Ideal for high-pressure, high-temperature, and corrosive environments
Technical Specifications
| Parameter | Specification Range |
|---|---|
| NPS (Nominal Pipe Size) | 1/2″ – 48″ |
| Outer Diameter | 21.3 mm – 1219 mm (approx. ¹³⁄₁₆″ – 48″) |
| Wall Thickness | 2 mm – 20 mm (approx. ¹⁄₁₆″ – ¹³⁄₁₆″) |
| Material Grades | 304 / 304L / 316L / 321 / 310S / 2205 / 2507 etc. |
| Connection Type | Butt welded |
| Surface Finish | Sand blasting / Pickling / Sand rolling |
| Standard Compliance | ASME B16.9, EN, DIN, JIS |
| Packaging | Woven bags, wooden boxes, or export-standard packaging |
Manufacturing Process
-
Raw material selection and inspection
-
Hot pressing or cold forming
-
Precision beveling and heat treatment
-
Surface treatment (pickling, sand blasting, or sand rolling)
-
Dimensional and quality control inspection
-
Packaging and labeling for export
Frequently Asked Questions
Q1: What’s the main difference between 45° and 90° elbows?
A1: A 45° elbow provides a more gradual change in flow direction, reducing friction loss and fluid resistance.
Q2: What connection types are available?
A2: These elbows are primarily supplied with butt-weld ends, ensuring strong and leak-free installation.
Q3: Can I order elbows in duplex or super duplex stainless steel?
A3: Yes, we supply elbows in 2205, 2507, and other duplex grades upon request.
Q4: Do you offer both seamless and welded options?
A4: Absolutely. We provide both types depending on pressure and dimensional requirements.
Q5: Are these elbows compliant with ASME B16.9?
A5: Yes, our 45-degree elbows are manufactured to ASME B16.9 and can meet other international standards.
Still Have Questions?
Feel free to contact us for more details or to discuss your custom elbow fitting requirements. Our technical support team is ready to assist with specifications, certifications, and delivery.
