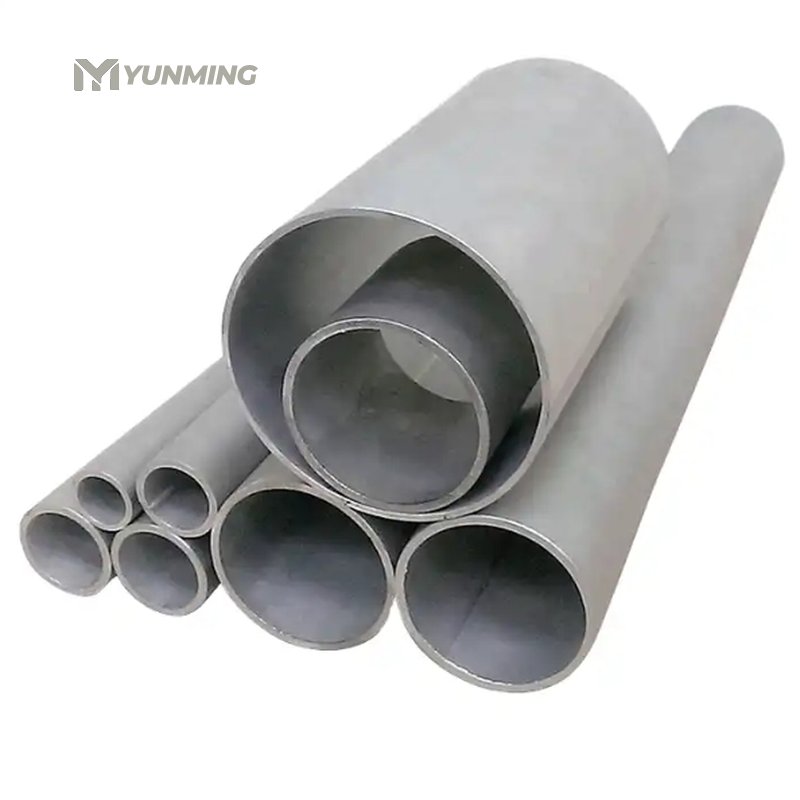

Stainless Steel Industrial Pipe
Yunming Metal’s Stainless Steel Industrial Pipes offer high strength, corrosion resistance, and long-term durability. Ideal for chemical, oil, and industrial process systems.
Have questions? YUNMING sales representatives are available for live chat now
Product Overview
Yunming Metal’s Stainless Steel Industrial Pipes are engineered for demanding applications in chemical processing, oil and gas, power generation, and mechanical systems. Made from high-grade stainless steel, they offer excellent strength, corrosion resistance, and long service life under high pressure and harsh environments.
These pipes are suitable for both fluid and gas transport, structural frameworks, and process piping systems, ensuring reliability in industrial-scale operations.
Application Areas
-
Oil and gas transmission pipelines
-
Petrochemical and chemical plant piping
-
Power plant boilers and heat exchanger systems
-
Industrial fluid transport and mechanical systems
-
Marine and offshore engineering structures
-
Pulp and paper, textile, and fertilizer industries
Product Features
-
High corrosion resistance in acidic and high-temperature environments
-
Exceptional mechanical strength and pressure resistance
-
Smooth inner walls to reduce fluid resistance and scaling
-
Compatible with welding, bending, and machining
-
Available in various grades and thicknesses for industrial needs
-
Adheres to international industrial pipe standards
Technical Specifications
| Item | Description |
|---|---|
| Material Grades | 304, 304L, 316, 316L, 321, 310S, 317L, 904L, duplex 2205, 2507, etc. |
| Outer Diameter Range | 6mm – 2500mm (approx. 1/4″ – 98-7/16″) (customizable) |
| Wall Thickness Range | 1mm – 150mm (approx. 3/64″ – 5-29/32″) |
| Length | Standard 6 meters (approx. 19′ 8″) or custom length available |
| Surface Finish | Pickled, Annealed, Sandblasted, Polished, etc. |
| Standards | ASTM A312, ASTM A358, ASTM A778, EN 10216, DIN 17456, etc. |
Manufacturing Process
Our stainless steel industrial pipes are manufactured under strict quality control using the following steps:
-
Raw material inspection and stainless steel billet preparation
-
Pipe forming via extrusion or cold drawing
-
Heat treatment for enhanced mechanical properties
-
Surface pickling or polishing to improve corrosion resistance
-
Dimensional calibration and straightening
-
Hydrostatic testing, PMI, and non-destructive testing
-
Final inspection and packaging
Frequently Asked Questions (FAQ)
Q1: What is the difference between industrial pipes and decorative stainless pipes?
A1: Industrial pipes are designed for strength, corrosion resistance, and pressure tolerance, while decorative pipes focus on surface finish and appearance with lower mechanical demands.
Q2: Can you supply pipes for high-temperature and corrosive environments?
A2: Yes, we offer grades like 316L, 310S, 904L, and duplex stainless steels, ideal for aggressive and high-temperature conditions.
Q3: Do you support third-party inspection?
A3: Absolutely. We welcome SGS, BV, TUV, and customer-designated inspection agencies before shipment.
Q4: What surface treatments are available?
A4: Common finishes include pickled, annealed, polished, or sandblasted, depending on your application requirements.
Q5: Can you manufacture large-diameter pipes for industrial projects?
A5: Yes, we support large-diameter and thick-wall stainless steel industrial pipes upon request.
Still Have Questions?
Contact us for technical consultation or custom solutions. Our engineering team is ready to assist with your stainless steel piping requirements.
