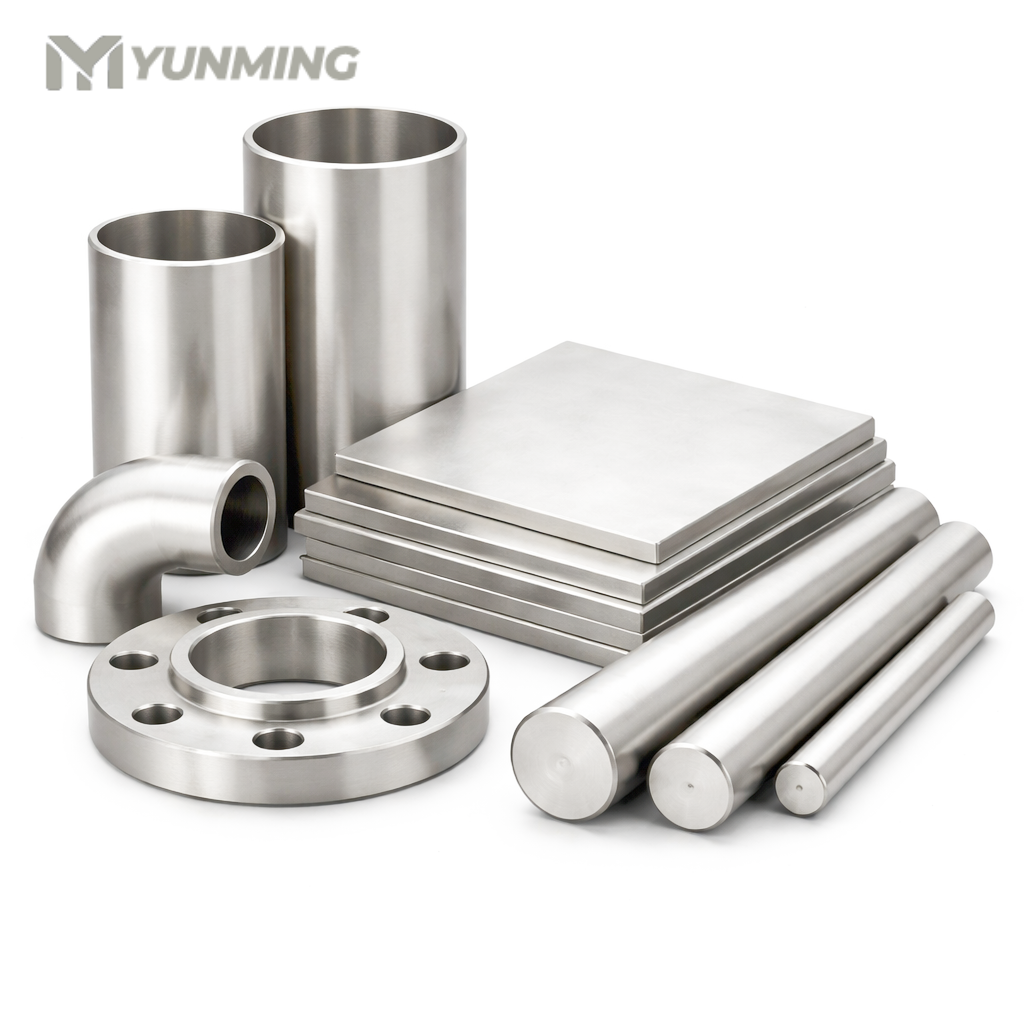

Monel Alloys

Product Overview

Monel Alloys are high-performance nickel-copper alloys widely used in demanding industrial environments where exceptional corrosion resistance and mechanical strength are required. Known for their outstanding performance in marine and chemical processing applications, Monel 400 and Monel K500 offer excellent resistance to seawater, acids, and alkaline solutions. These alloys maintain structural integrity under extreme conditions, including high temperatures and high-pressure systems.

Monel alloys are extensively applied in heat exchanger tubing, seawater piping systems, offshore oil & gas equipment, and chemical processing plants. Their resistance to stress corrosion cracking and biofouling makes them particularly suitable for long-term service in harsh environments. For industries requiring reliable and durable materials, Monel alloys provide a proven solution with consistent performance and extended service life.

Application Areas

• Marine and Shipbuilding: Seawater piping, condensers, and propeller shafts

• Oil & Gas Industry: Offshore platforms, valves, and high-pressure piping systems

• Chemical Processing: Acid handling equipment and reactors

• Heat Exchanger Systems: Tubes and components exposed to corrosive fluids

• Power Generation: Boiler components and condenser tubing

• Desalination Plants: Brine heaters and seawater handling systems

Product Features

• Excellent corrosion resistance in seawater and chemical environments

• High strength and toughness across a wide temperature range

• مقاومت عالی در برابر stress corrosion cracking

• Superior resistance to biofouling and marine growth

• Good weldability and fabrication performance

• Stable mechanical properties in extreme conditions

• Long service life with reduced maintenance costs

Technical Specifications

Outer Diameter (OD):

• 6 mm – 630 mm

• 1/4″ – 24″

Wall Thickness (WT):

• 0.5 mm – 50 mm

• 1/32″ – 2″

Length:

• 1000 mm – 12000 mm

• 3 1/4′ – 39 3/8′

Standards:

• ASTM B165 / ASTM B725 / ASTM B163

• ASME SB165 / SB725

• UNS N04400 (Monel 400), UNS N05500 (Monel K500)

Grades:

• Monel 400

• Monel K500

Manufacturing Process

Monel alloys are produced through a strict and controlled manufacturing process to ensure consistent quality and performance. Raw materials are first melted in vacuum or electric furnaces to achieve precise chemical composition. The molten alloy is then cast and formed through hot rolling or cold drawing processes, depending on the required dimensions.

Subsequently, heat treatment is applied to enhance mechanical properties and corrosion resistance. Final products undergo rigorous inspection, including dimensional checks, chemical analysis, mechanical testing, and non-destructive testing, ensuring compliance with international standards and project requirements.

FAQ

1. What is the difference between Monel 400 and Monel K500?
Monel 400 offers excellent corrosion resistance, while Monel K500 provides higher strength due to age-hardening properties, making it suitable for more demanding applications.

2. Are Monel alloys suitable for seawater applications?
Yes, Monel alloys are highly resistant to seawater corrosion and are widely used in marine and offshore environments.

3. What certifications can be provided?
Mill Test Certificates (MTC), third-party inspection reports, and compliance with ASTM/ASME standards are available upon request.

4. What is the typical delivery time?
Standard delivery time is usually 15–30 days depending on specifications and order quantity.

5. What is your MOQ for Monel alloy products?
MOQ depends on product type and size, but flexible solutions can be provided for different project needs.

Conclusion

Monel alloys are a reliable choice for industries requiring superior corrosion resistance and mechanical performance in harsh environments. With proven applications in marine, oil & gas, and chemical sectors, these alloys ensure durability, safety, and long-term efficiency. Contact us today to discuss your project requirements and receive a customized solution.
